Advanced structural porcelains, because of their one-of-a-kind crystal structure and chemical bond qualities, reveal efficiency benefits that metals and polymer products can not match in severe settings. Alumina (Al ₂ O FIVE), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si four N FOUR) are the four major mainstream engineering porcelains, and there are essential differences in their microstructures: Al two O four comes from the hexagonal crystal system and relies upon solid ionic bonds; ZrO two has three crystal kinds: monoclinic (m), tetragonal (t) and cubic (c), and acquires unique mechanical homes through stage change strengthening system; SiC and Si Five N four are non-oxide porcelains with covalent bonds as the major part, and have stronger chemical stability. These architectural differences directly bring about substantial differences in the prep work process, physical properties and engineering applications of the 4. This article will systematically analyze the preparation-structure-performance partnership of these four ceramics from the viewpoint of products scientific research, and explore their leads for commercial application.

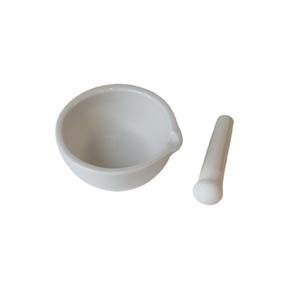

(Alumina Ceramic)
Preparation procedure and microstructure control
In regards to preparation process, the 4 porcelains show evident distinctions in technical courses. Alumina ceramics make use of a relatively typical sintering procedure, normally utilizing α-Al two O ₃ powder with a purity of more than 99.5%, and sintering at 1600-1800 ° C after dry pressing. The trick to its microstructure control is to inhibit uncommon grain growth, and 0.1-0.5 wt% MgO is generally included as a grain boundary diffusion prevention. Zirconia ceramics require to introduce stabilizers such as 3mol% Y TWO O five to maintain the metastable tetragonal phase (t-ZrO two), and use low-temperature sintering at 1450-1550 ° C to avoid extreme grain development. The core process obstacle hinges on accurately regulating the t → m phase shift temperature level home window (Ms factor). Given that silicon carbide has a covalent bond ratio of approximately 88%, solid-state sintering requires a high temperature of greater than 2100 ° C and relies upon sintering help such as B-C-Al to create a liquid phase. The response sintering technique (RBSC) can achieve densification at 1400 ° C by penetrating Si+C preforms with silicon melt, yet 5-15% complimentary Si will certainly stay. The preparation of silicon nitride is the most complicated, normally making use of general practitioner (gas pressure sintering) or HIP (warm isostatic pushing) processes, adding Y TWO O FIVE-Al ₂ O two collection sintering aids to form an intercrystalline glass phase, and warm therapy after sintering to take shape the glass phase can significantly boost high-temperature performance.

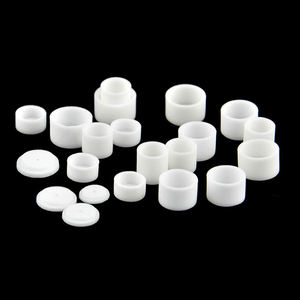

( Zirconia Ceramic)
Comparison of mechanical properties and strengthening device
Mechanical residential or commercial properties are the core analysis indicators of structural porcelains. The 4 sorts of materials show completely different conditioning mechanisms:

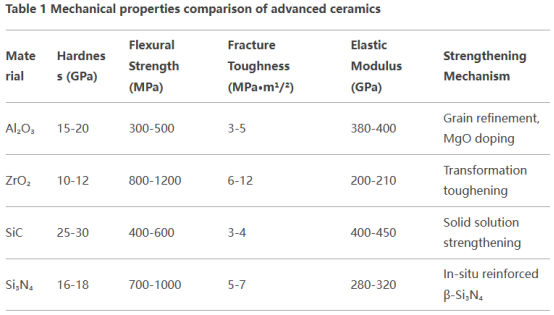

( Mechanical properties comparison of advanced ceramics)
Alumina mainly relies on fine grain fortifying. When the grain dimension is lowered from 10μm to 1μm, the strength can be raised by 2-3 times. The outstanding toughness of zirconia comes from the stress-induced phase transformation device. The anxiety area at the fracture tip sets off the t → m phase transformation accompanied by a 4% quantity growth, resulting in a compressive stress and anxiety protecting result. Silicon carbide can enhance the grain border bonding strength via solid solution of components such as Al-N-B, while the rod-shaped β-Si six N ₄ grains of silicon nitride can produce a pull-out impact comparable to fiber toughening. Crack deflection and bridging contribute to the enhancement of durability. It deserves keeping in mind that by creating multiphase porcelains such as ZrO ₂-Si Five N ₄ or SiC-Al Two O ₃, a selection of toughening devices can be coordinated to make KIC exceed 15MPa · m ONE/ ².
Thermophysical homes and high-temperature habits
High-temperature stability is the crucial benefit of architectural ceramics that differentiates them from traditional materials:

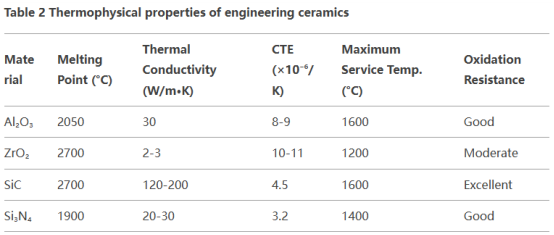

(Thermophysical properties of engineering ceramics)
Silicon carbide displays the most effective thermal monitoring efficiency, with a thermal conductivity of up to 170W/m · K(similar to light weight aluminum alloy), which is due to its easy Si-C tetrahedral framework and high phonon breeding rate. The reduced thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have excellent thermal shock resistance, and the vital ΔT worth can get to 800 ° C, which is especially suitable for duplicated thermal biking atmospheres. Although zirconium oxide has the highest melting factor, the softening of the grain boundary glass phase at high temperature will cause a sharp drop in stamina. By embracing nano-composite modern technology, it can be increased to 1500 ° C and still preserve 500MPa strength. Alumina will certainly experience grain boundary slip over 1000 ° C, and the enhancement of nano ZrO ₂ can develop a pinning result to prevent high-temperature creep.
Chemical security and corrosion behavior
In a corrosive environment, the four sorts of porcelains show substantially various failure mechanisms. Alumina will liquify on the surface in strong acid (pH <2) and strong alkali (pH > 12) remedies, and the rust price boosts greatly with increasing temperature, reaching 1mm/year in steaming focused hydrochloric acid. Zirconia has great tolerance to inorganic acids, however will go through low temperature level deterioration (LTD) in water vapor settings above 300 ° C, and the t → m stage transition will certainly result in the formation of a tiny split network. The SiO two protective layer formed on the surface of silicon carbide gives it superb oxidation resistance listed below 1200 ° C, yet soluble silicates will certainly be generated in molten antacids metal atmospheres. The rust habits of silicon nitride is anisotropic, and the rust rate along the c-axis is 3-5 times that of the a-axis. NH Three and Si(OH)₄ will certainly be generated in high-temperature and high-pressure water vapor, resulting in material bosom. By optimizing the make-up, such as preparing O’-SiAlON porcelains, the alkali deterioration resistance can be enhanced by greater than 10 times.

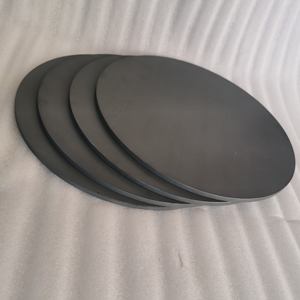

( Silicon Carbide Disc)
Typical Design Applications and Situation Research
In the aerospace area, NASA utilizes reaction-sintered SiC for the leading side elements of the X-43A hypersonic airplane, which can stand up to 1700 ° C wind resistant heating. GE Aviation uses HIP-Si five N ₄ to produce wind turbine rotor blades, which is 60% lighter than nickel-based alloys and allows higher operating temperature levels. In the medical field, the fracture stamina of 3Y-TZP zirconia all-ceramic crowns has gotten to 1400MPa, and the life span can be included greater than 15 years with surface area gradient nano-processing. In the semiconductor sector, high-purity Al ₂ O six porcelains (99.99%) are utilized as tooth cavity products for wafer etching tools, and the plasma deterioration price is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm components < 0.1 mm ), and high production price of silicon nitride(aerospace-grade HIP-Si six N ₄ gets to $ 2000/kg). The frontier advancement instructions are focused on: 1st Bionic framework style(such as covering split structure to increase strength by 5 times); two Ultra-high temperature sintering modern technology( such as trigger plasma sintering can attain densification within 10 minutes); five Intelligent self-healing porcelains (containing low-temperature eutectic phase can self-heal splits at 800 ° C); ④ Additive manufacturing technology (photocuring 3D printing precision has actually reached ± 25μm).
( Silicon Nitride Ceramics Tube)
Future growth fads
In a detailed contrast, alumina will certainly still dominate the conventional ceramic market with its cost advantage, zirconia is irreplaceable in the biomedical area, silicon carbide is the preferred material for extreme settings, and silicon nitride has excellent possible in the area of premium equipment. In the following 5-10 years, with the combination of multi-scale structural regulation and smart production modern technology, the efficiency limits of engineering ceramics are anticipated to achieve brand-new developments: as an example, the design of nano-layered SiC/C porcelains can attain sturdiness of 15MPa · m 1ST/ TWO, and the thermal conductivity of graphene-modified Al two O two can be enhanced to 65W/m · K. With the innovation of the “dual carbon” technique, the application scale of these high-performance ceramics in brand-new power (gas cell diaphragms, hydrogen storage materials), eco-friendly manufacturing (wear-resistant components life increased by 3-5 times) and other areas is anticipated to preserve an ordinary annual development rate of greater than 12%.
